Thousandfold Expansion Microscopy

Background

Expansion microscopy (ExM) is a technique that physically magnifies biological specimens by embedding them in a swellable hydrogel, allowing for super-resolution imaging using standard optical microscopes. This is particularly useful to overcome limitations of budget and access to more powerful imaging systems. While previous iterations – like iterative expansion microscopy (iExM) and ONE microscopy – have achieved significant magnification factors (up to ~20× or more), reaching the sub-nanometer scale has remained a challenge. Current methods often struggle to maintain isotropy and structural integrity at extreme magnification scales, limiting their ability to resolve individual protein structures. This work introduces 1000ExM, a method designed to achieve ~1000-fold linear expansion, aiming to bridge the gap between light microscopy and atomic-scale structural biology.

Key findings

• Sub-nanometer resolution: The authors demonstrate that 1000ExM can achieve a linear expansion factor of approximately 1000×, enabling the visualization of proteins and peptides at sub-nanometer scales.
• Isotropic expansion across our rounds: The process described in the preprint utilizes a four-round gelation sequence, where each round provides a distinct expansion and shrinkage factor to reach a massive cumulative magnification while preserving the relative spatial coordinate patterns of amino acid as bona-fide markers.

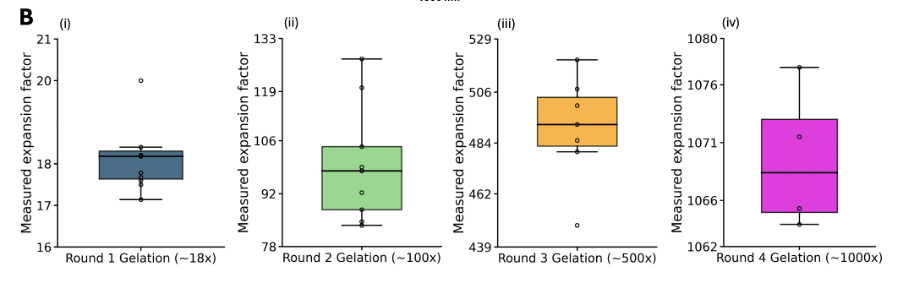

Fig.1 B. Physical expansion factors measured after full expansion at each round of gelation

• Successful imaging of mCLING and GFP: The method was validated by imaging the mCLING peptide, as a molecular ruler, and Green Fluorescent Protein (GFP) showing that molecular-level features can be detected and reconstructed.

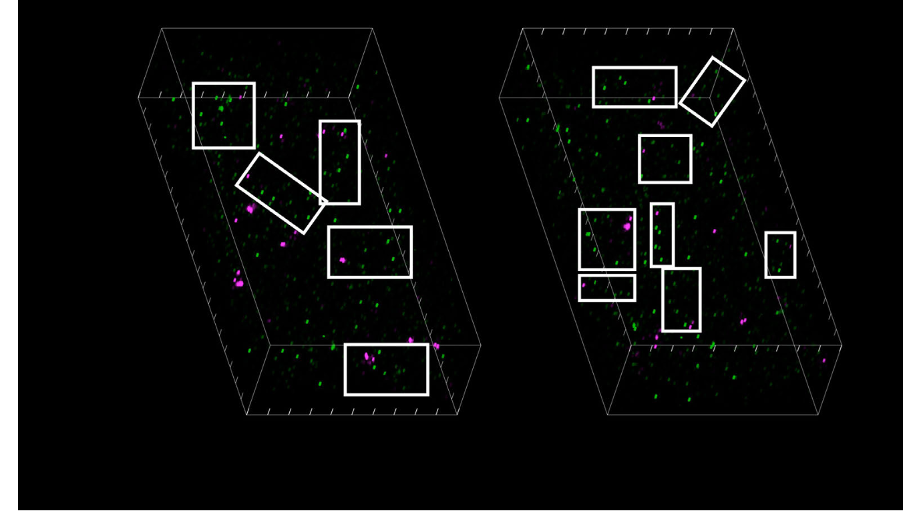

Sup. Fig.7 – 3D regions containing putative mCLING peptides after ~1000x expansion

• Computational identifiability: Simulations suggested that under realistic expansion distortion, 3D spatial fingerprints of amino acids could support proteome-scale molecular identification of individual molecules in situ.
• Robust emitter detection: The researchers developed a multi-stage computational pipeline to address the challenge of identifying molecular signals in 1000ExM samples, where fluorescent emitters become extremely dim and diluted across a billion-fold increased volume. This pipeline uses unsupervised graph-based segmentation and physically grounded shape validation to extract true signals from background detector noise.

What I like about the preprint:

This work is both important and interesting because it has the potential to transform standard confocal microscopes into tools capable of achieving sub-nanometre resolution.  By physically spacing the molecular environment by a factor of a thousand, it overcomes the steric impediment and signal overlap that often affects traditional super-resolution techniques.  Additionally, the ability to computationally model and then experimentally observe single-molecule expansion factors and distance distributions, provides a robust framework for validating the accuracy of these expansions.  Finally, the simulation of proteome-scale identification opens a theoretical future where users could simply identify every protein in a cell based on their spatial amino acid patterns.

Future directions and questions for the authors:

• Multicolour residue mapping: The current version of your protocol shows results primarily on single-color labelling. You note that different molecules would be required for multicolour mapping; how close is the development of these specific chemical anchors?
• Sample integrity in complex tissues: While the principles were demonstrated with peptides and purified proteins, how would the isotropy of 1000× expansion hold up in dense, heterogeneous environments like the brain or tissue biopsies where different organelles may expand at different rates?
• Data processing at scale: Given the massive volume of 3D regions at this magnification, what are the computational requirements for scaling the segmentation and 3D reconstruction pipeline to image entire cells or large tissue volumes?
